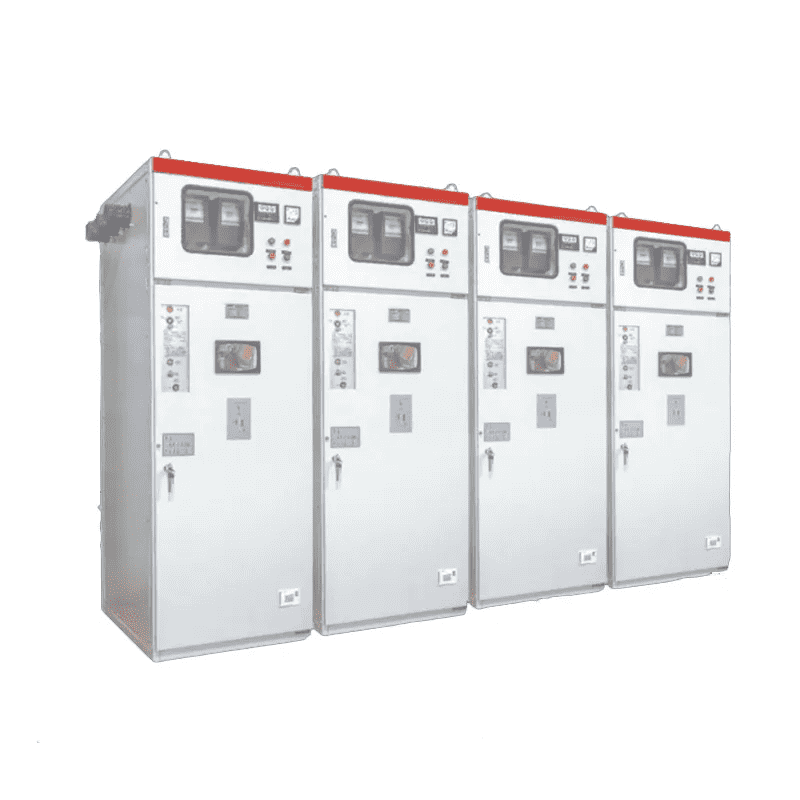

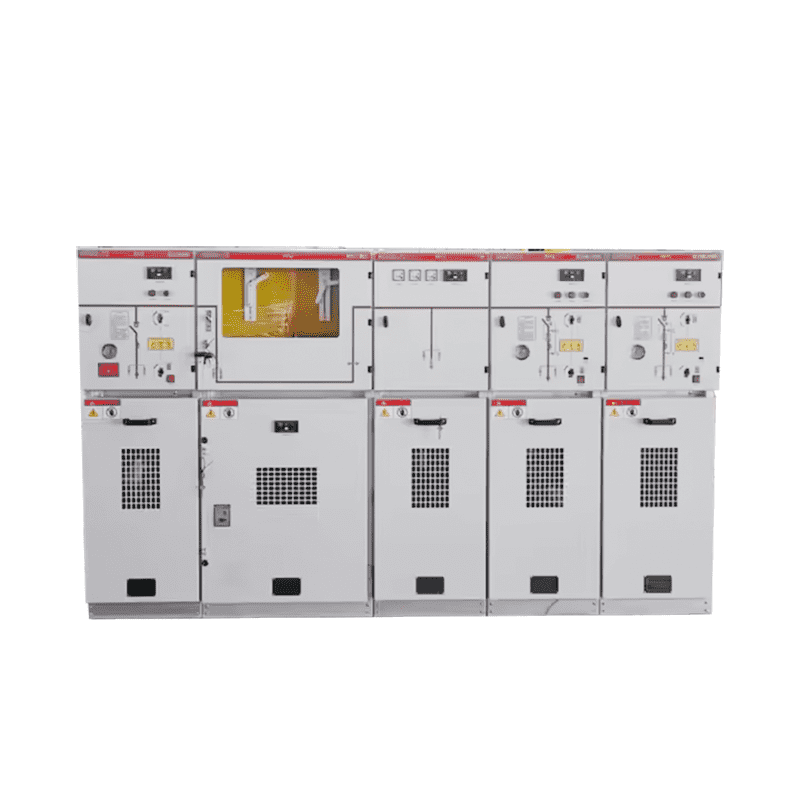

HXGN-12 Vacuum Ring Main Unit

Name: HXGN-12 Vacuum Ring Main Unit
SKU: 2376
Availability: InStock

Category: High-Voltage Cabinets

Product Features
The cabinet is made of aluminum galvanized steel plate that is bent and assembled multiple times. The cabinet is made of aluminum galvanized steel plate that is bent and assembled multiple times, and can be infinitely expanded.
The main components of the switch are compressed air or vacuum load switches and their combined electrical appliances. Small size, maintenance free, three-phase linkage structure, obvious isolation fracture. The installation of load switches and composite appliances is flexible and can be installed on both sides or the front.
Equipped with complete and reliable mechanical linkage and interlocking devices, fully realizing the “five prevention interlocking” function.
Front maintenance and reliable wall installation. Can be operated manually or with electric tools, and has remote control function.
The load switch adopts a linked protection insulation valve or transparent insulation cover to shield live contacts and ensure personal safety.
HXGN-12 cabinet is a fixed AC metal enclosed switchgear (referred to as ring cabinet), which is a complete set of AC high voltage equipment with a rated voltage of 12KV and a rated frequency of 50Hz. It is mainly used for three-phase AC ring network, terminal distribution network, and industrial electrical equipment to receive, distribute, and protect electrical energy. Commonly used in high-voltage/low-voltage prefabricated cabinet substations. Widely used in industries such as power, metallurgy, petrochemicals, and urban construction.
